3D Printers/XYZprinting

da Vinci Junior 1.0w

willow pipe 2016. 2. 3. 11:41

XYZPrinting / 3D프린터 / 밀폐형 / PLA / USB 2.0 / SD card / Wi-Fi / 최대 150 x150 x150 mm





Connect from Anywhere in Your Home Network
Now upgraded with WiFi connectivity, the da Vinci Jr. 1.0w allows anyone to wirelessly send 3D files from their Windows and Mac computers to their 3D printer from anywhere in their local area network. No lines, no cable management, no worries!



Big Things Come in Small Packages
Don’t let its slimmer and lighter look fool you, the da Vinci Jr. has a robust build size of 5.9 x 5.9 x 5.9 inches and a resolution of 100 to 400 microns. Its design allows for the inclusion of an auto-feeding filament system, which takes the PLA filament to the extruder, and ensures that the filament is loaded properly and is ready to print.



2nd Generation Auto-Calibration System
The da Vinci Jr. 1.0w uses an intuitive 9-point calibration detection system that determines the distance between the extruder and the print bed. After it finishes detection, it adjusts the extruder accordingly to ensure that you have the best possible prints!



Quick and Easy Maintenance
The da Vinci Jr.w features a fluid, press-and-release extruder which makes for an easy extruder replacement or cleaning experience. Simply open up your 3D printer, press the release button, and the replacement or cleaning process can be done within few seconds.



Print Smart, Print Green
The da Vinci Jr.’s PLA filament spools are a non-toxic, biodegradable plastic that is recyclable and safe for the environment! With its compact design, the da Vinci Jr. only consumes 75 watts of power. This eco-friendly 3D printer makes sure that nothing goes to waste.



The #1 3D Printer for Homes and Schools
With its fully enclosed design and non-heated print bed, the da Vinci Jr.w is perfect for kids of all ages as well as first time 3D printer users. The 2nd Generation Auto-calibration system ensures that the print bed and extruder are always at the appropriate level for perfect prints, while the WiFi connectivity allows for print jobs can be sent from anywhere in your home and in the classroom.

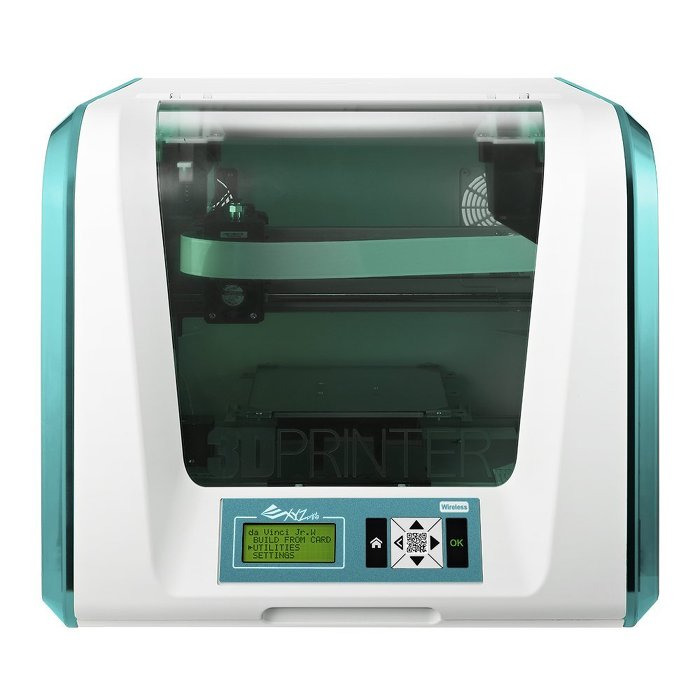

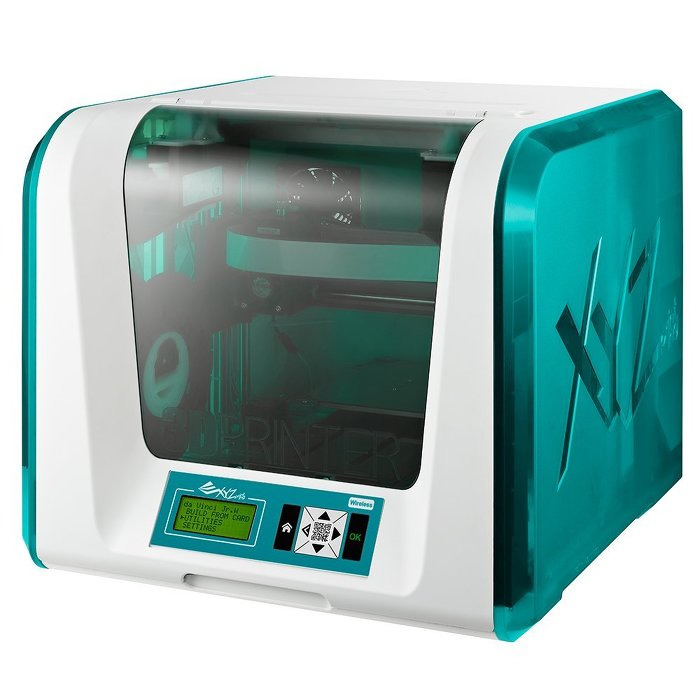

1. Appearance







"19.jpg"








2. Specifications

Product Dimension (WxHxD)

16.54 x 16.93 x 14.96 inch (42 x 43 x 38 cm )

Package Dimension (WxHxD)

 21.53 x 22.87 x 18.7 inch (54.7 x 58.1 x 47.5 cm)
Package Gross Weight 33.07 lbs (15kg)
Technology FFF (Fused Filament Fabrication)

Maximum Build Volume
(HxWxD)

5.9 x 5.9 x 5.9 inch (15x15x15cm)

Resolution Fine 0.1 mm (100 microns)
Standard 0.2 mm (200 microns)
Speed 0.3 mm (300 microns)
Ultra Fast 0.4 mm (400 microns)
Print Head Single Nozzle
Nozzle Diameter 0.4 mm
Filament Diameter 1.75 mm
Filament Material

PLA

Panel Type 2.6” FSTN LCM
Language Multi Language
Connectivity

USB 2.0, SD card,Wifi *Systems are compatible with SDHC cards up to 32GB in size.
* Product features, price and specification are subject to change without notice.

Software

XYZware
File Types .stl , XYZ Format (.3w)

OS Support

Windows 7 and above (for PC)
Mac OSX 10.8 and above (for Mac)
Note: Stardard VGA driver on operating system, or a graphics card doesn't support OpenGL 2.1, may cause unknown error in XYZware.

Hardware Requirements
(for PC/Mac)

X86 32/64-bit compatible PCs with 4GB+ DRAM (for PC)
X86 64-bit compatible Macs with 4GB+ DRAM (for Mac)

Mobile Operating System

Android 4.0 and above.
iOS 7 and above (iPad Only)






3. Products
