3D Printers/XYZprinting

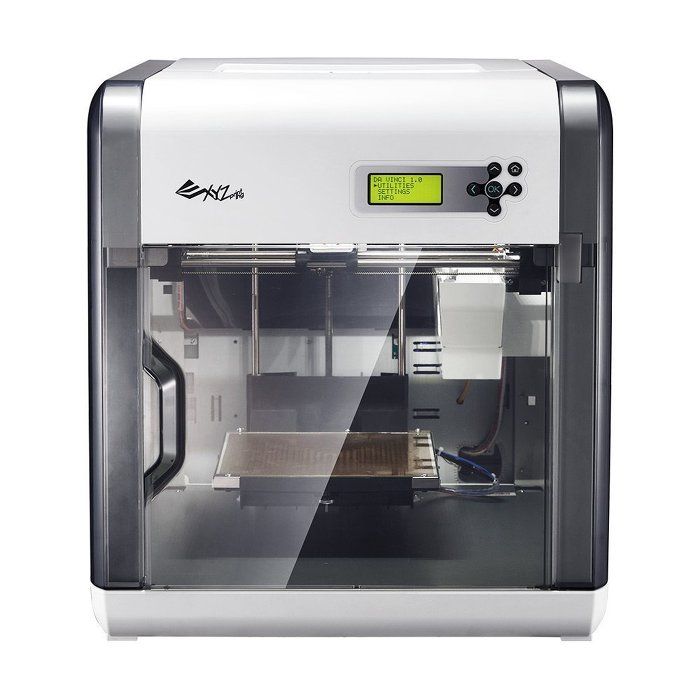

da Vinci 1.0

willow pipe 2016. 1. 21. 19:42

XYZPrinting / 3D프린터 / FDM / 0.4mm / 싱글 노즐 / 밀폐형 / ABS





2014 CES Editor's Choice Award Winner - Most Affordable 3D Printer

Largest 475 cubic inch build volume - 7.8 x 7.8 x 7.8 (20 cm x20 cm x20 cm)

Free filament as the starter kit and Free XYZWare software

The da Vinci 1.0 prints in ABS


MAKE BIG.
Creates up to 20 x 20 x 20cm models.
Build faster, bigger and better with the da Vinci 1.0’s large auto adjusting build plate.


HIGH PRECISION.
Create smooth models that need minimal sanding or finishing with the da Vinci’s precise 100-Microns layer resolution.


COLOUR FILAMENT.
The XYZprinting ABS filament has been designed to be easy to install and replace. The da Vinci 1.0 will also notify you when the filament is running low so you don’t run out.

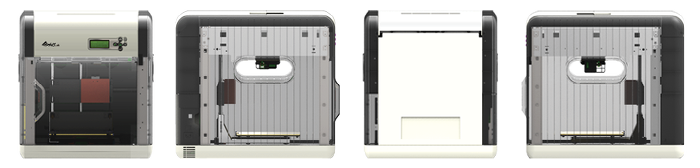

2. Appearance












3. Specifications

Dimensions (W x H x D) :

Package :
Gross Weight :

Technology :

Maximum Build Volume (W x H x D) :

Resolution :



Print Head :

Nozzle Diameter :

Filament Diameter :

Filament Material :

Display :

Language :

Connectivity :

Software :

OS Support :

Hardware Requirements :

18.4 x 20 x 22 inch (46.8 x 51 x 55.8 cm)
22.1 x 23.3 x 27.6 inch (56 x 59 x 70 cm)
26kg (57.3 lb)
FFF (Fused Filament Fabrication)
7.8W x 7.8H x 7.8D inch (20 x 20 x 20 cm)
Fine 0.1 mm (100 microns)

Standard 0.2 mm (200 microns)

Speed 0.3 mm (300 microns)

Ultra Fast 0.4 mm (400 microns)
Single Nozzle
0.4 mm
1.75 mm
ABS
Panel Type

2.6” FSTN LCM
Multi Language
USB 2.0
XYZWare

File Types .stl(XYZ Format)
Windows XP ( .Net 4.0 required) and Windows 7 above (for PC)
Mac OSX 10.8 above-bit (for Mac)
X86 32/64-bit compatible PCs with 4GB+ DRAM (for PC)

X86 64-bit compatible Macs with 4GB+ DRAM (for Mac)









4. Products
