FlashForge Explorer DLP
FlashForge / 3D Printer / DLP / Liquid resin / USB / Build Volume 76.8 x 57.6 x 150 mm
Layer by layer, Flashforge DLP Explorer can print objects with an XY resolution of 50 microns
and a Z resolution of 25 microns, making smallest resolution possible to avoid unsightly layer
stepping as seen in FDM printers.
Flashforge DLP Explorer 3D printer can guarantee each voxel (pixel projected) at the right location
when curing resin via its projector, leading to higher accuracy in dimension, equivalent to high-end
stereolithography 3D printers.
The projector cures a complete layer at a single time, much faster than FDM/SLA 3D printers.
EASY SET-UP. ONE-TOUCH OPERATION
A printer that just works. No calibration is needed before you just hit the button to build fine detailed objects. Get set-up in as little as several minutes.
QUALITY MATERIALS
High-performance resins are optimized for Flashforge Explorer 3D printer for reliable printing with exquisite detail.
POWERFUL FOR MULTIPLE APPLICATIONS
Flashforge Explorer DLP 3D printer offers many advantages over consumer FDM/SLA 3D printers, working well for a wide variety of applications, such as Jewelry, Rapid Prototyping and Design.
Small build volume is featured for Jewelers to save material. Explorer supports castable resins which can be used directly in the traditional lost-wax casting process.
The Explorer is giving researchers and designers the speed, detail, and capability to turn concepts and ideas to reality as creatively as they design.

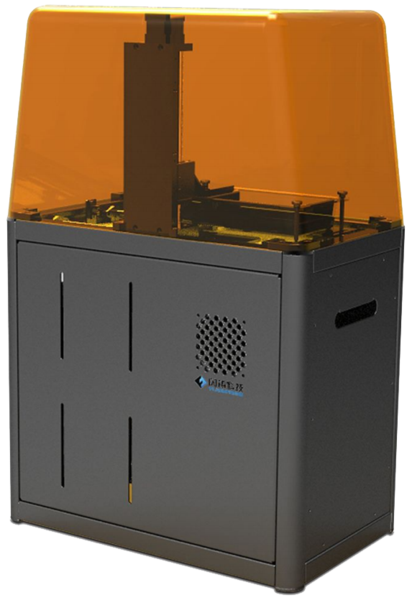

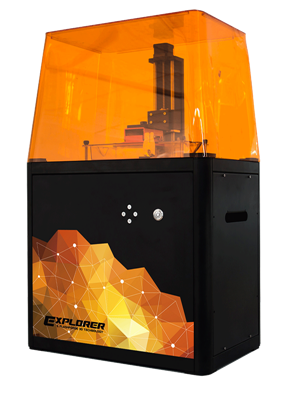

1. Appearance
2. Specifications
|
PRINTING |
Printing Technology |
DLP Stereolithography |
|
XY Resolution |
50 Microns | |
| Layer Thickness |
50 Microns | |
| Build Envelope |
51.2 x 38.4 x 100 mm | |
| Support Material |
FE1200 (Castable Resin) | |
|
SOFTWARE & ELECTRICAL |
Software |
FlashDLPrint |
| File Type |
STL | |
| AC Input |
220V, 50Hz, 300W | |
| Display Port |
DVI | |
| Connectivity |
USB Cable | |
|
WEIGHT & DIMENSION |
Product Weight |
24 KG [52.9 LBS] |
| Product Dimension |
500 x 310 x780 mm | |
| Shipping Dimension |
605 x 415 x 385 mm | |
