Cube Pro
3D Systems / 3D프린터 / ABS, PLA, INF, nylon / 24 colors / USB 2.0 / Mobile / Wi-Fi / 최대 6 x 6 x 6 inches
Controlled print environment
A controlled process environment ensures improved accuracy and reliability of print for effortless, professional quality every time for your largest ABS plastic prints. Automated settings ensure home-safe printing in your mancave, on your workbench and at your desktop.
Print big, print accurate
The CubePro features the largest-in-class build platform with ultra high-resolution. With prints 2.5 times larger than any other desktop prosumer and hobbyist printer (11.2" x 10.6" x 9.06" or 285.4mm x 270.4mm x 230mm) with ultra high-resolution settings of 70-micron thin print layers, professional quality printing has never been so large or easy.
New materials, limitless possibilities
Printing with complexity has never been easier. Break beyond boundaries set by unachievable overhangs and the laws of gravity, and enter the possibilities of intricate patters, degrees of freedom and suspension in space. Create functional prototype models or make end-use parts for your engineering applications.
PLA / ABS / Nylon / Infinity
Strong, fast & long-lasting
Guaranteed faster, more accurate prints with stabilized print mechanics and easy feed cartridges for prolonged material life.
Triple color + three materials = thousands of options
Get more expressive with 3D printing in up to 3 simultaneous colors with 3 material options. Select from over 24 vibrant colors for more unique combinations.
Connect better to experience better
Connect conveniently with an easy to use color touchscreen display and WiFi capability.

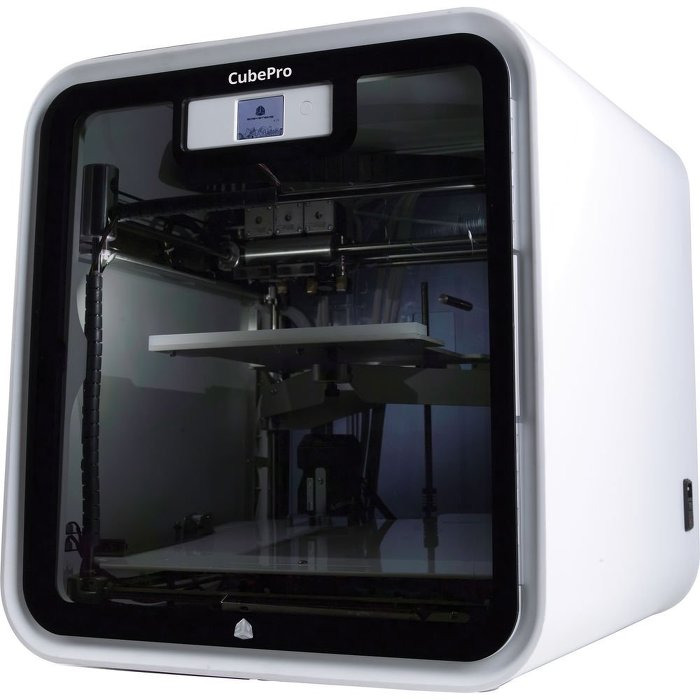

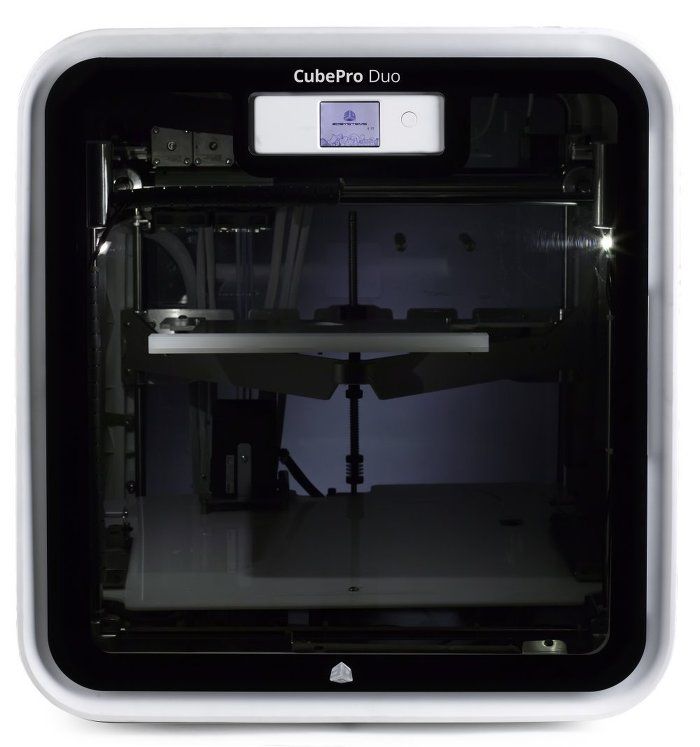

1. Appearance
2. Specifications
|
WEIGHT & DIMENSIONS |
CubePro dimensions
Maximum build size
|
22.75(w) x 23.25(h) x 22.75(d) inches 11.2(w) x 9.06(h) x 10.6(d) inches |
|
Z AXIS RESOLUTION |
All models |
0.100mm (0.004" / 100 microns) |
|
LAYER THICKNESS |
All models |
70 microns, 200 microns and 300 microns for fast mode. Available for all three models. |
|
PRINT TOLERANCE |
All models |
X and Y axis ± 1% dimension or ± 0.2mm (0.008" / 200 microns) whichever is greater. Z axis ± half the processed z resolution. Shrinkage and warpage can occur on models and is purely geometry dependent. |
|
PRINT SPEED EXTRUDED VOLUME |
All models |
Maximum 15mm (9/16") per second and polymer dependent |
|
POWER REQUIREMENTS |
All models |
100 - 240v AC |
|
MAXIMUM OPERATING TEMPERATURE AT EXTRUDER TIP |
All models |
536°F / 280°C |
|
SUPPORT MATERIAL |
All models |
PLA / ABS / dissolvable natural PLA |
|
SUPPORT REMOVAL |
All models |
Break away supports with pliers or cutters or just fingers where appropriate. PLA plastic is soluble in sodium hydroxide solution used with a heated ultrasonic cleaner (care is required with this option). |
|
SOFTWARE |
Description |
All CubePro printers include complimentary conversion software. This application converts your 3D model into layered slices (G-code), ready for printing on your machine. Other features and uses of CubePro software include: •Clear, familiar and easy-to-use interface •Scaling, rotating and movement of parts on a simulated print bed •Proven default settings for all CubePro 3D printers •Ability to create custom profiles as needed •Imperial/metric conversion available •Built-in STL file verification •Combined part and tool path viewer •Profiles for multiple material/support materials |
|
COMPATIBILITY |
Windows requirements |
32 or 64 bit operating systems: •Windows 7 •Windows 8 •Windows 8.1 •Windows is required for ad-hoc WiFi print job submission – if not already installed, the Cube software will automatically install the Microsoft .NET 4.0 framework |
| Mac OSX requirements | Mac 10.9 and up | |
| Minimum hardware requirements |
Processor: Multi-core processor - 2GHz or faster per core |
