3D Scanner/XYZprinting

3D Scanner

willow pipe 2016. 1. 22. 12:40

XYZPrinting / 3D스캐너 / 238g / USB 3.0 / 윈도우 8.1 또는 이상 / 100~700mm






1. Features

Requires Windows 8.1 or later

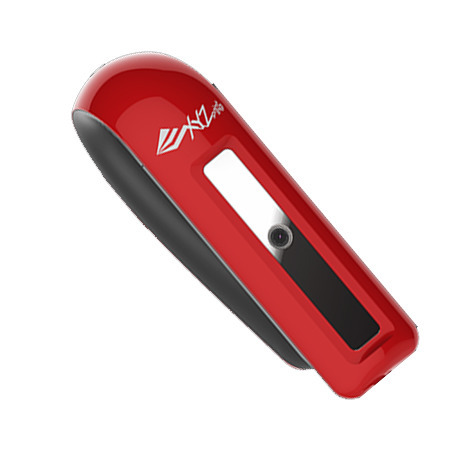

This lightweight and portable Handheld 3D Scanner is powered by an Intel® RealSense™ module which gives it its full-colored scanning ability and a 648x480 at 30 fps scanning resolution.




http://kr.xyzprinting.com/kr_ko/Eshop/handHeldScanner


• Real Sense, Real Powerful
Powered by Intel® RealSense™ module, the XYZprinting 3D Scanner is fast in both scanning ability and processing speed. It allows for a 10 - 70 cm, operating range with the wide scanning distance of 15 - 25 cm, and the quality resolution of 640 x 480 at 30FPS.



• Scan with Ease
The XYZprinting Handheld 3D Scanner has a compact and light design which allows you to move it around the desired target for scanning with ease. No large, complicated equipment necessary!



• Take it Wherever You Go
Use the clip on the back of the XYZprinting 3D Scanner to a tablet, laptop, or any other one of your favorite devices for increased portability.



• Great Affordability
At just EUR 199, the XYZprinting 3D Scanner is the most versatile, lightweight, and affordable 3D scanner on the market.



• Scan and Print
Turn your physical world into digital replicas, where you can modify them, and then reproduce them with 3D printing. Need to replace that broken part that you can't find in stores? Want to make a gift for someone but don't know how to 3D model it? Simply scan the desired objects to recreate them in different sizes or change it completely to create new ones.



• Powered by Intel® RealSense™
It's fast in both scanning ability and processing speed.It allows for a wide scanning distance, great accuracy and reliability.



• Exclusive Software
The XYZscan has two scan modes: Head Mode and Object Mode. These modes ensure that you get the best results when scanning to make 3D portraits or replicating objects.

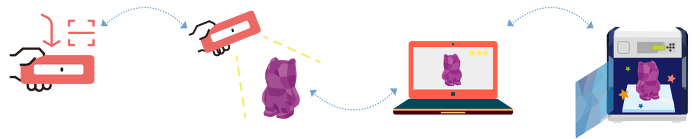

2. Appearance







• Hold
XYZ 프린팅 휴대용 3D 스캐너를 왼손(오른손)으로 수평을 유지 시켜 줍니다.

• SCAN
XYZ 프린팅 휴대용 3D 스캐너를 잡고 캡처(이미지) 하고자 하는 대상의 0.1 ~ 0.7m 내에서 여러각도로 대상 주변을 스캔합니다.

• SAVE
단, 몇 분만의 디지털 복제본을 만드실 수 있습니다.

• PRINT
당신이 보유한 3D 프린터에 디지털 복제본을 가져와 모형을 만듭니다.







3. Specifications

Scan Engine Intel® RealSense™ Camera
Scan Volume (WxDXH)
Maximum Scan Volume (WxDXH)



Minimum Scan Volume (WxDXH)

Intel® RealSense™ Camera
Head Mode
15.75 x 9.84 x 15.75 inch / 40 x 25 x 40 cm
Object Mode
23.6 x 23.6 x 11.8 inch / 60 x 60 x 30 cm
1.97 x 1.97 x 1.97 inch / 5 x 5 x 5 cm

Scan Resolution 1.5mm
Depth Image Size 640 x 480 @ 30 FPS
Color Image Size 640 x 480 @ 30 FPS
Operating Range 3.93 - 27.55 inch(10 - 70 cm)
Data Interface USB 3.0
Dimension 16.1 x 61.8 x 24 inch(41 x 157 x 61 mm)
Weight (N.W.)

0.44 lbs(198g)

Software

XYZscan
Output File Types .stl, .obj

Operating System

Windows 8.1 and above (32-bit and 64-bit)
Microsoft .NET Framework 4.0 above

Hardware

Minimum Hardware Requirement
4th Generation Intel® Core™ i5 Process (PC)
4G RAM Basic (8G RAM Recommended)









4. Products
